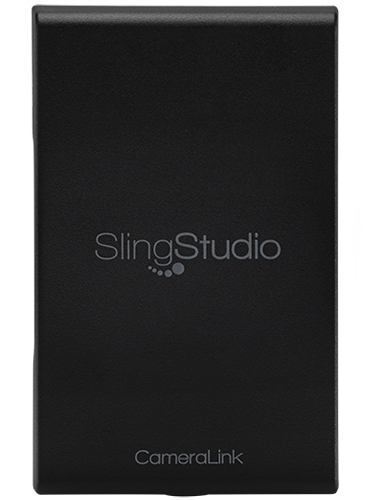

CameraLink

Wireless

• 802.11ac – used to transmit encoded video from camera/camcorder to SlingStudio

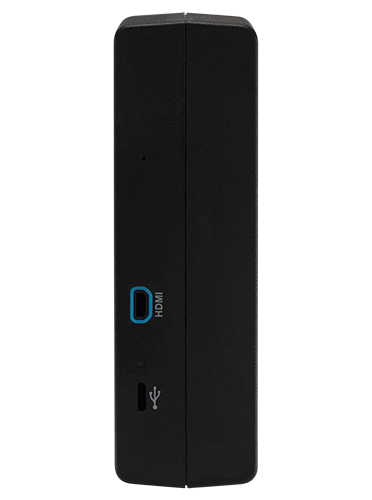

Interfaces

• HDMI Type D input supporting both interlaced and progressive formats (1080p60, 1080i60, 1080p30, 720p60, 720p30)
• Micro-USB input (for charging via USB)

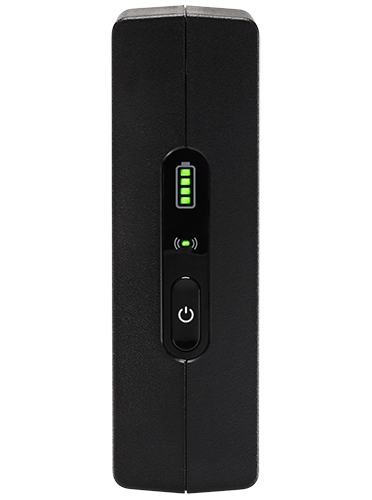

LED Indicators

• 4 battery status LEDs
• 1 Power status LED
• 1 Program Tally LED
• 1 Micro-USB charging LED

Power Status LED

• Blinking Red: Pairing/WPS mode
• Solid White: Connected to SlingStudio
• Blinking White and Program Tally LED is Blinking White: Powering on
• Blinking White and Program Tally LED is Off: Powered on and looking to connect

Program Tally LED

• Solid Orange: CameraLink is live/on-program/on-air
• Off: CameraLink is not live/on-program/on-air

Buttons

• Power on/off button
• Reset button (pinhole)

Physical Attributes

• Size: (H) 1.38" x (W) 4.56" x (D) 2.87" / (H) 35 mm x (W) 115.8 mm x (D) 72.8 mm
• Weight: 0.6 lbs (270 g)
• Operating Temperature: 32ºF to 95ºF (0º to 35ºC)
• Humidity: 0 to 95% (non-condensing)

Battery

• Lithium-ion 3.7 V, 3100 mAH battery

Power Supply

• Input: 100–240 V, 50–60 Hz
• Output: 12 VDC, 4.16 A

Battery Life

• 2+ hours

Battery Charging

• Micro-USB charging port for use with common smartphone/tablet USB cables

Charging Time

• 3 to 4 hours when CameraLink is off using a USB cable with 10 W (5 V, 2 A) or higher

Video Encoding

• H.264 High Profile 4:2:0
• 1080p60 up to 30 Mbps
• 1080p30 up to 16 Mbps
• 720p60 up to 16 Mbps
• 720p30 up to 4 Mbps

Audio Encoding

• AAC-LC at 320 kb/s
• 2-channel 48 KHz, 16-bit

Compatibility

• Supported* cameras and camcorders with an HDMI output for wirelessly sending video and audio to SlingStudio

* See supported devices
